Iscar

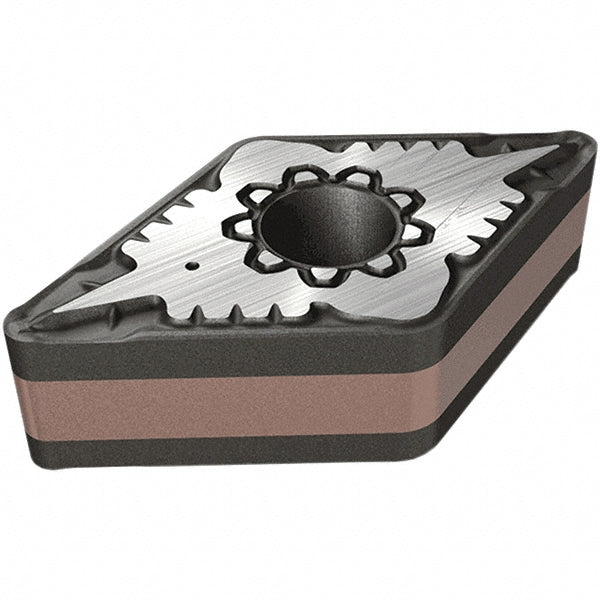

DNMG 432-F3M Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5567868
MFR# 5567868ISO/ANSI# DNMG 432-F3MSeries Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5567868 is a DNMG 432-F3M solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0310
Included angle55.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-F3M
Length range0.6000 - 0.6500
Manufacturers catalog number5567868
Manufacturer gradeIC6025
Maximum depth of cut0.0590
Multi use applicationTurning
Primary workpiece materialM
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
