Iscar

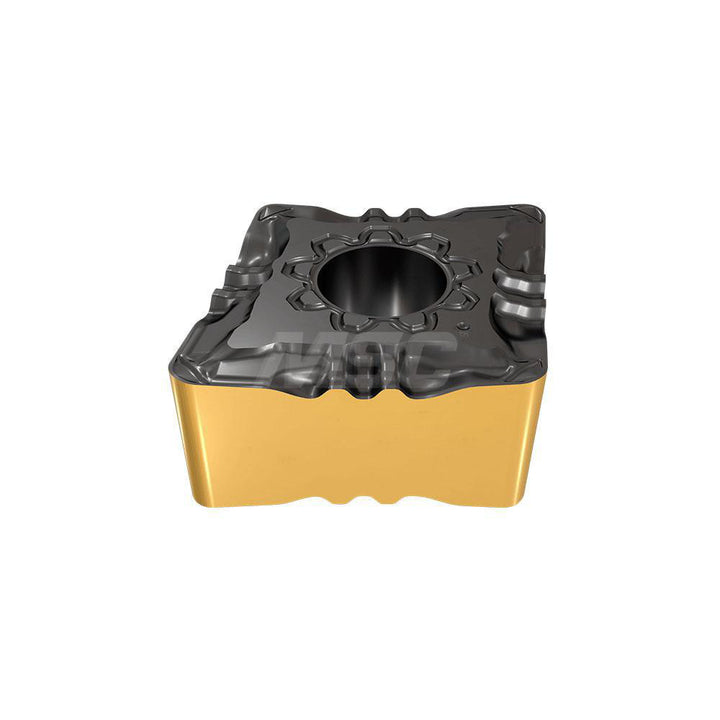

ISO 13399 Cermet Insert, Grade IC520N, TiCN - Iscar 5567915
MFR# 5567915ISO/ANSI# ISO 13399Cat# CNMG 120408-F3PSeries Isoturn
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC520N
MaterialCermet
CoatingTiCN
Description
The Iscar 5567915 is a ISO 13399 cermet indexable insert, grade IC520N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCermet
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 120408-F3P
Manufacturer gradeIC520N
Maximum depth of cut0.1378
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
