Iscar

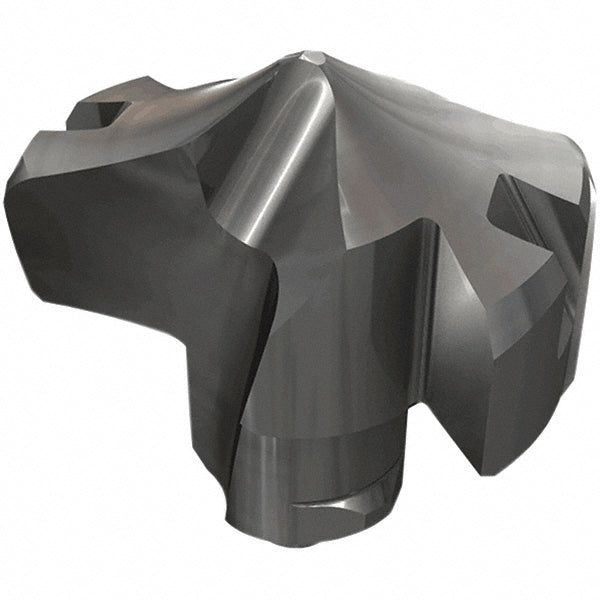

Carbide Insert, Grade IC908, TiAlN - Iscar 5567935
MFR# 5567935Series HCP-IQ
$98.85List $126.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567935 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3780
Drill point angle140
Flute typeSpiral
Functional length0.1400
Height0.2280
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size9
Iso numberHCP 096-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2280
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDeep Hole; Self-Centering
Tip materialSolid Carbide
Web thinningWeb Thinned
