Iscar

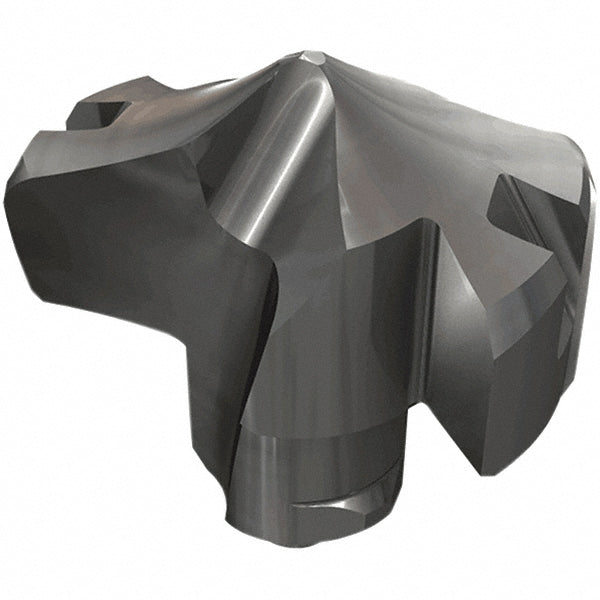

Carbide Insert, Grade IC908, TiAlN - Iscar 5567936
MFR# 5567936Series HCP-IQ
$98.85List $126.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567936 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3820
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1399
Height0.228
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size9
Iso numberHCP 097-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2286
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
