Iscar

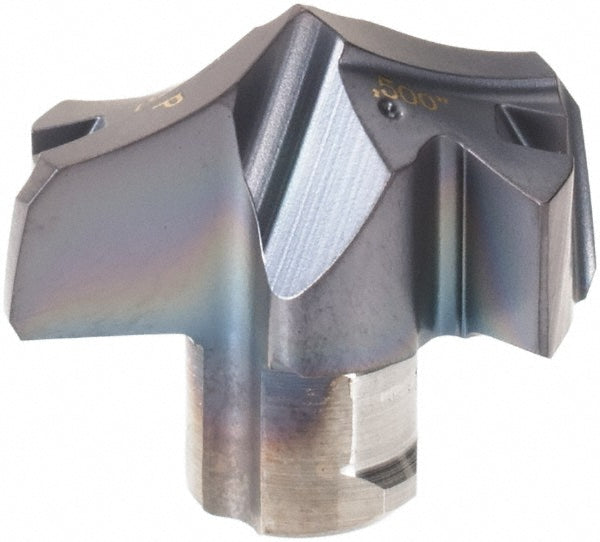

Carbide Insert, Grade IC908, TiAlN - Iscar 5567958
MFR# 5567958Series HCP-IQ
$103.46List $132.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567958 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1/2
Drill point angle135
Flute typeSpiral
Functional length0.1510
Height0.2760
Included angle degree135
Insert geometryP
Insert holding methodTwist
Insert seat size12
Iso numberHCP 127-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2760
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDeep Hole; Self-Centering
Tip materialSolid Carbide
Web thinningWeb Thinned
