Iscar

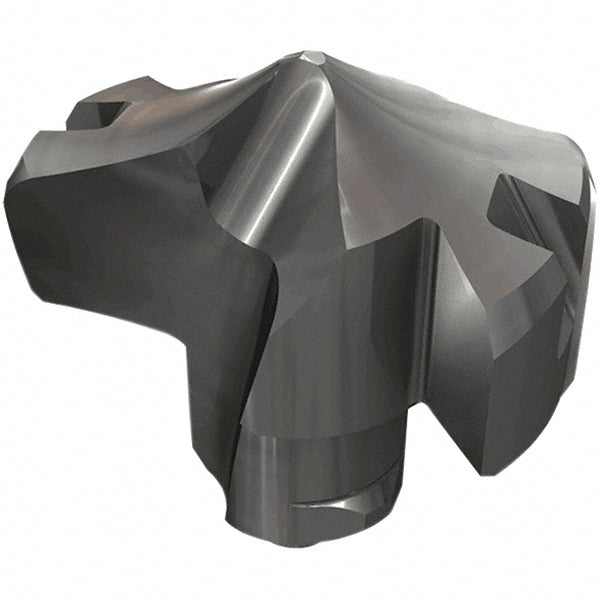

Carbide Insert, Grade IC908, TiAlN - Iscar 5567959
MFR# 5567959Series HCP-IQ
$103.46List $132.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5567959 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.5040
Drill point angle135
Flute length (mm)4.00
Flute typeHelical
Functional length0.1513
Height0.276
Included angle degree135
Insert geometryP
Insert holding methodClamp
Insert seat size12
Iso numberHCP 128-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2758
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
