Iscar

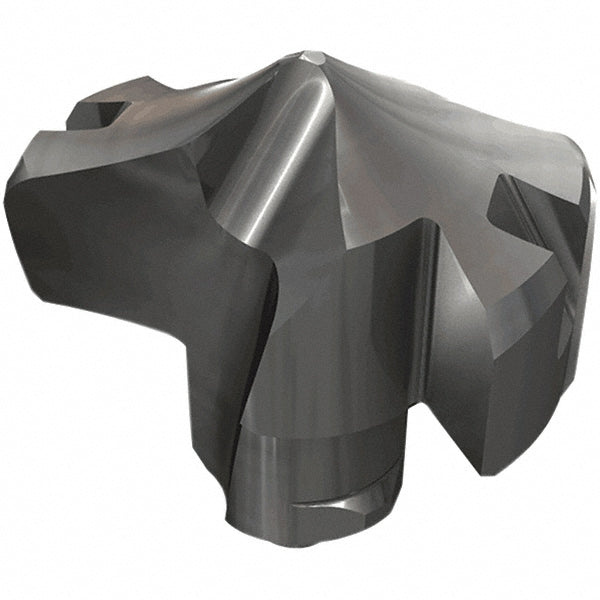

Carbide Insert, Grade IC908, TiAlN - Iscar 5568041
MFR# 5568041Series HCP-IQ
$163.27List $209.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568041 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in57/64
Drill point angle138
Flute length (mm)8.00
Flute typeHelical
Functional length0.2979
Height0.502
Included angle degree138
Insert geometryP
Insert holding methodClamp
Insert seat size22
Iso numberHCP 226-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5028
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
