Iscar

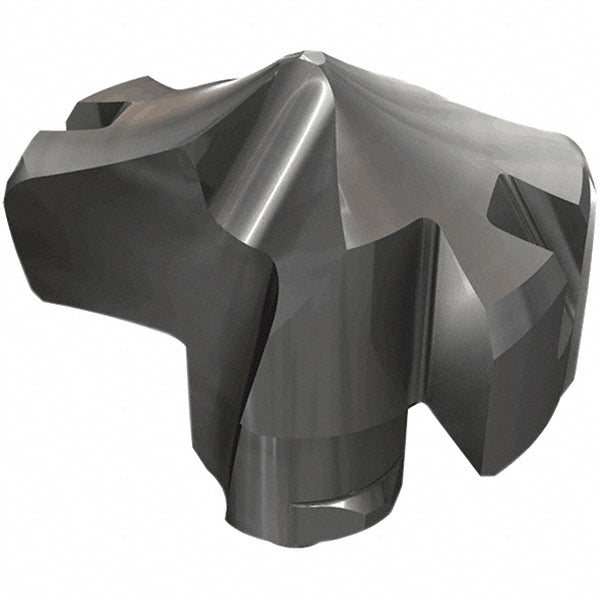

Carbide Insert, Grade IC908, TiAlN - Iscar 5568051
MFR# 5568051Series HCP-IQ
$166.16List $209.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568051 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in15/16
Drill point angle138
Flute length (mm)8.00
Flute typeHelical
Functional length0.3172
Height0.525
Included angle degree138
Insert geometryP
Insert holding methodClamp
Insert seat size23
Iso numberHCP 238-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5252
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
