Iscar

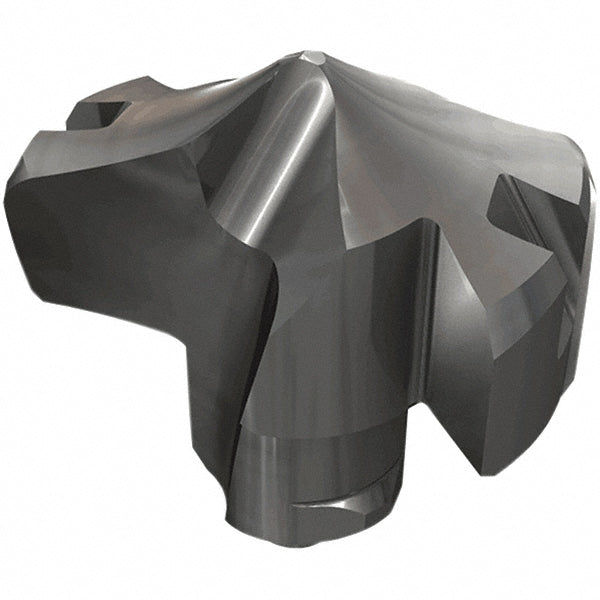

Carbide Insert, Grade IC908, TiAlN - Iscar 5568066
MFR# 5568066Series HCP-IQ
$176.00List $225.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568066 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0200
Drill point angle137
Flute typeSpiral
Functional length0.3460
Height0.5710
Included angle degree137
Insert geometryP
Insert holding methodTwist
Insert seat size25
Iso numberHCP 259-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5710
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleDeep Hole; Self-Centering
Tip materialSolid Carbide
Web thinningWeb Thinned
