Iscar

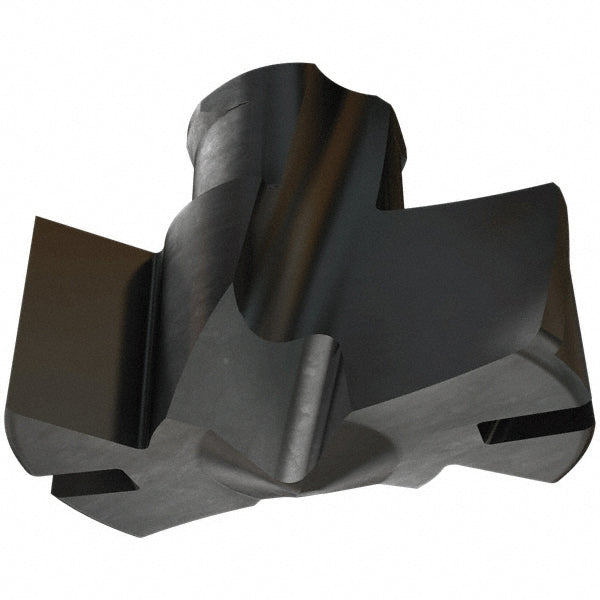

Carbide Insert, Grade IC908, TiAlN - Iscar 5568109
MFR# 5568109Series FCP
$100.65List $128.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568109 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.5080
Drill point angle140
Flute typeSpiral
Functional length0.1610
Height0.1890
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size12
Iso numberFCP 129
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.1890
Point typeThinned
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleFlat Bottom
Tip materialSolid Carbide
Web thinningWeb Thinned
