Iscar

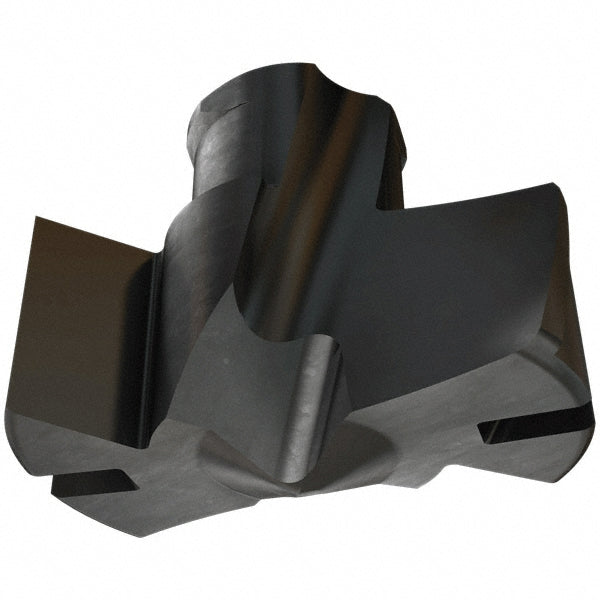

Carbide Insert, Grade IC908, TiAlN - Iscar 5568158
MFR# 5568158Series FCP
$134.22List $171.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568158 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7520
Drill point angle140
Flute length (mm)7.00
Flute typeStraight
Functional length0.2561
Height in5/16
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size19
Iso numberFCP 191
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3128
Point typeFlat
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeStraight
StandardsISO 13399
StyleFCP
Tip materialSolid Carbide
Web thinningWeb Thinned
