Iscar

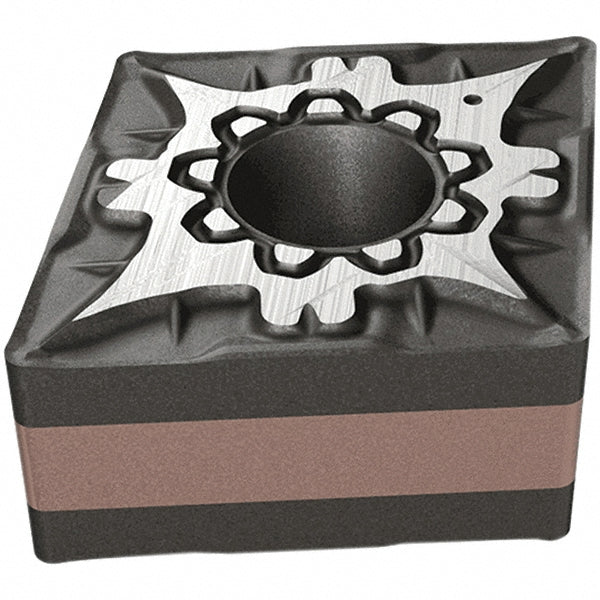

CNMG 432-F3M Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5568259
MFR# 5568259ISO/ANSI# CNMG 432-F3MSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5568259 is a CNMG 432-F3M solid carbide indexable insert, grade IC806, AlTiN coated. Suited for s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 432-F3M
Length range0.5000 - 0.6000
Manufacturers catalog number5568259
Manufacturer gradeIC806
Maximum depth of cut0.0590
Primary workpiece materialS
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
