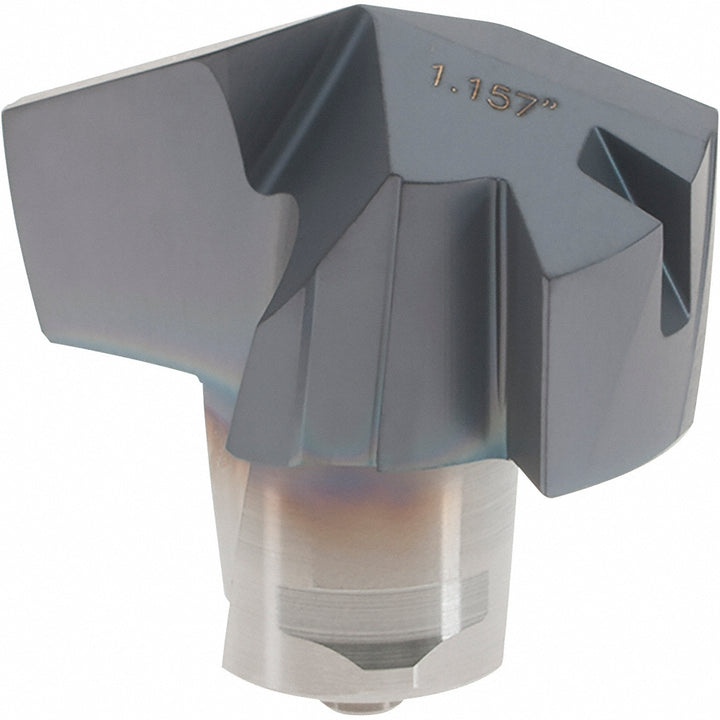

Carbide Insert, Grade IC908, TiAlN - Iscar 5568348
MFR# 5568348Series ICP
$193.33List $247.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5568348 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.1570
Drill point angle140
Flute typeSpiral
Functional length0.4840
Height0.6610
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size29
Iso numberICP 294
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.6610
Point typeThinned
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
