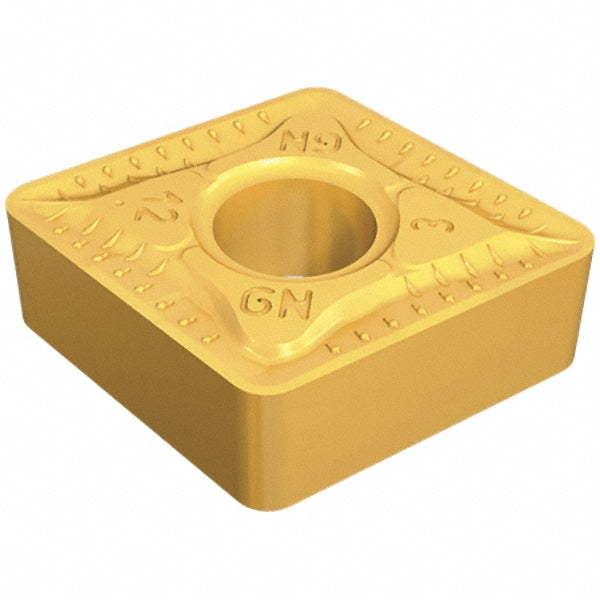

CNMG 643-GN Carbide Insert, Grade IC830, TiAlN - Iscar 5568596

Iscar

CNMG 643-GN Carbide Insert, Grade IC830, TiAlN - Iscar 5568596

MFR# 5568596ISO/ANSI# CNMG190612Series Isoturn

$37.03List $47.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5568596 is a CNMG 643-GN carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle80
Inscribed circle in3/4
Insert handRight Hand
Insert length0.7600
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643-GN
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number5568596
Manufacturer gradeIC830
Maximum depth of cut0.3140
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
