Iscar

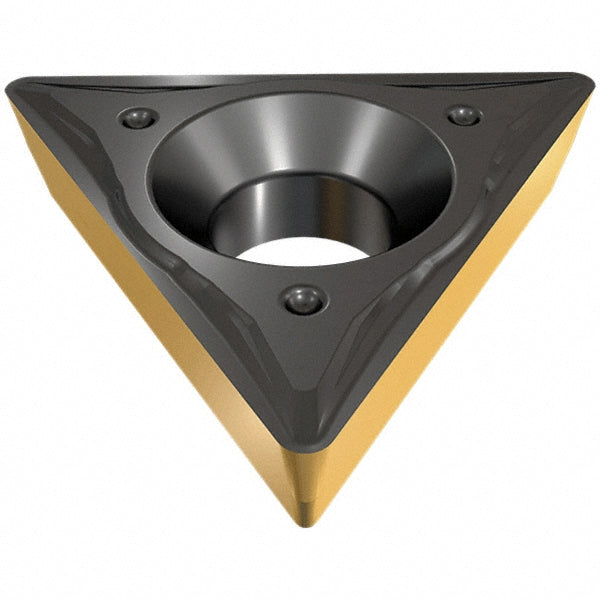

TPMT 321 Solid Carbide Insert, Grade IC830, TiAlN - Iscar 5568599
MFR# 5568599ISO/ANSI# TPMT 321Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5568599 is a TPMT 321 solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerT
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Hole diameter0.1690
Included angle60.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPMT
Insert thickness0.1250
Iso codeTPMT 321
Length range0.6500 - 0.7000
Manufacturers catalog number5568599
Manufacturer gradeIC830
Maximum depth of cut0.1570
Multi use applicationTurning
Primary workpiece materialM; P; S
Relief angle11
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
