Iscar

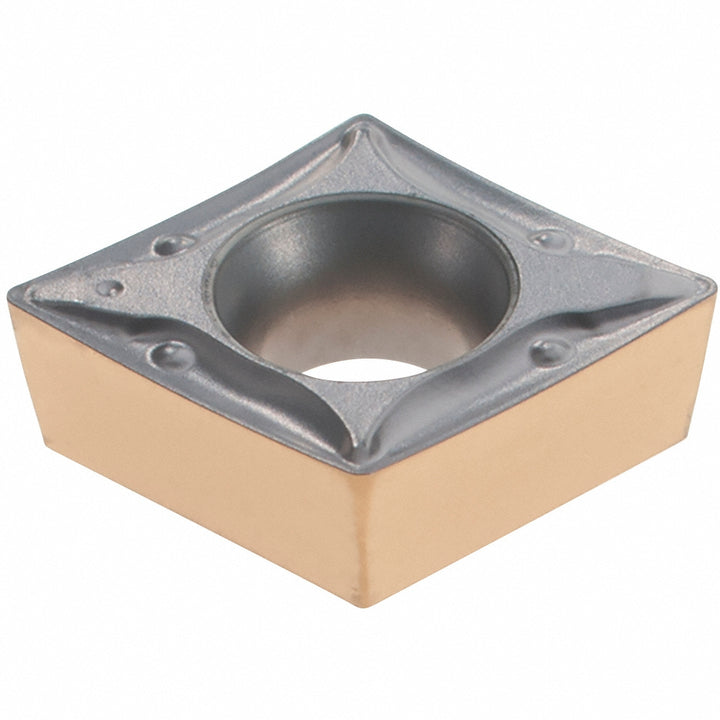

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5568600
MFR# 5568600ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5568600 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for universal.
Specifications
Chip breakerT
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Hole diameter0.1730
Included angle80.0
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1380
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
