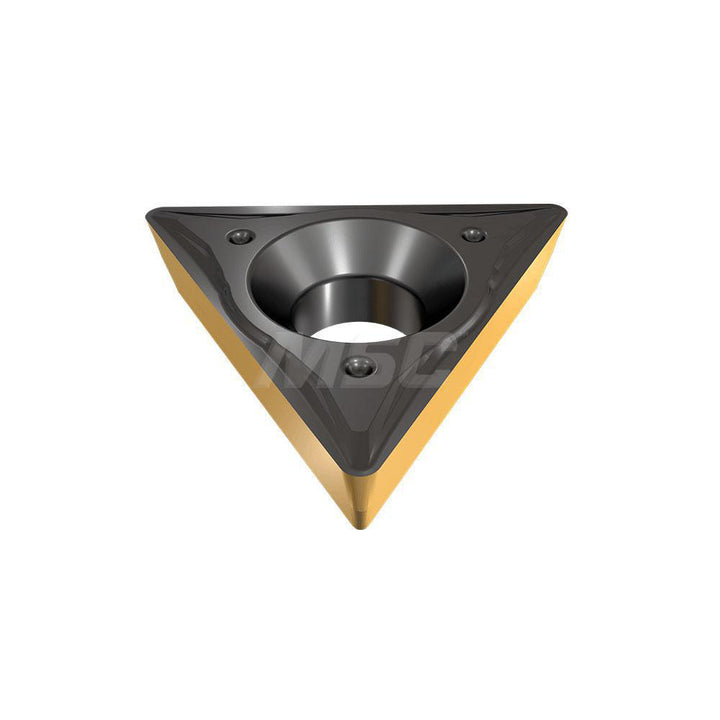

ISO 13399 Carbide Insert, Grade IC830, TiAlN - Iscar 5568601

Iscar

ISO 13399 Carbide Insert, Grade IC830, TiAlN - Iscar 5568601

MFR# 5568601ISO/ANSI# TPMT110204Series Isoturn

$14.89List $19.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeT - Triangle
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5568601 is a ISO 13399 carbide indexable insert, grade IC830, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeTPMT2-1
Ansi size code2-1
Chip breakerT
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Hole diameter0.1180
Included angle60
Inscribed circle0.2500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2-1
Insert styleTPMT
Iso codeISO 13399
Iso insert codeTPMT110204
Iso size code110204
Manufacturer gradeIC830
Maximum depth of cut0.1180
Primary workpiece materialUniversal
Relief angle11
Side clearancePositive
StandardsISO 13399
Tolerance codeM
