Iscar

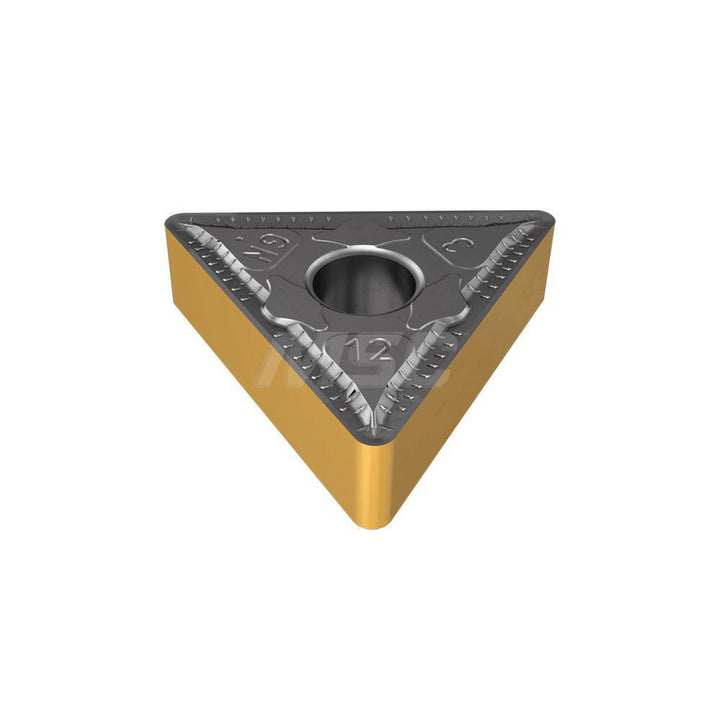

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5568602
MFR# 5568602ISO/ANSI# ISO 13399Series Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5568602 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for universal.
Specifications
Chip breakerG
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Included angle60.0
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1570
Primary workpiece materialUniversal
StandardsISO 13399
Tolerance codeM
