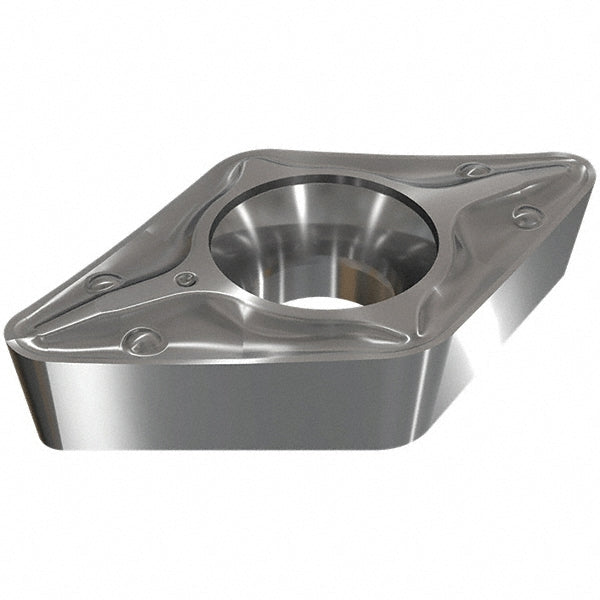

DCMT 2-1-PF Solid Carbide Insert, Grade IC830, TiAlN/AlTiN/TiN - Iscar 5568609
MFR# 5568609ISO/ANSI# DCMT 2-1-PFSeries Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN/AlTiN/TiN
Description
The Iscar 5568609 is a DCMT 2-1-PF solid carbide indexable insert, grade IC830, TiAlN/AlTiN/TiN coated. Suited for m, p, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN/AlTiN/TiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle55.0
Inscribed circle0.2500
Insert handRight Hand
Insert length0.3030
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleDCMT
Insert thickness0.0940
Iso codeDCMT 2-1-PF
Length range0.3000 - 0.4000
Manufacturers catalog number5568609
Manufacturer gradeIC830
Maximum depth of cut0.1380
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
