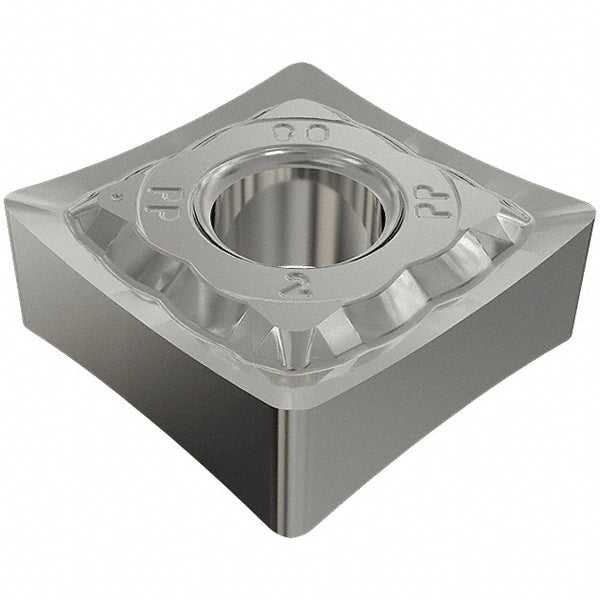

SNMG 432-PP Carbide Insert, Grade IC830, TiAlN - Iscar 5568610

Iscar

SNMG 432-PP Carbide Insert, Grade IC830, TiAlN - Iscar 5568610

MFR# 5568610ISO/ANSI# SNMG120408Series Isoturn

$15.67List $20.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5568610 is a SNMG 432-PP carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeSNMG432
Ansi size code432
Chip breakerPP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Included angle90
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness0.1870
Iso codeSNMG 432-PP
Iso insert codeSNMG120408
Iso size code120408
Manufacturers catalog number5568610
Manufacturer gradeIC830
Maximum depth of cut0.1570
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Width in1/2
