Iscar

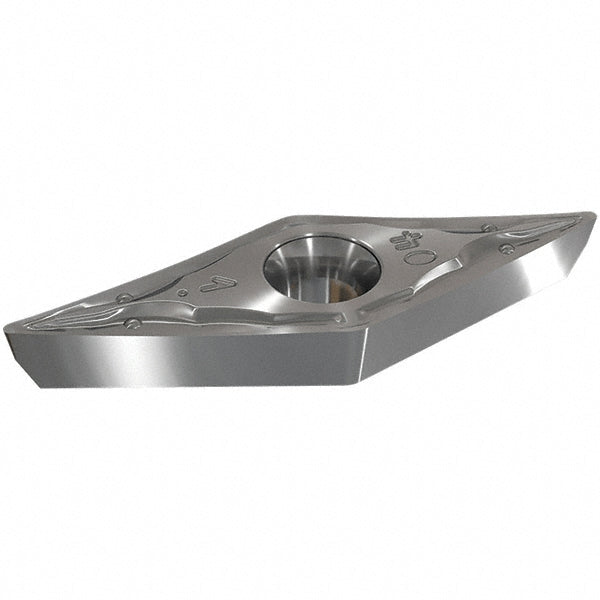

VCGT 130304-PF Carbide Insert, Grade IC830, TiAlN - Iscar 5568611
MFR# 5568611ISO/ANSI# VCGT 130304-PFSeries Isoturn
$25.73List $33.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5568611 is a VCGT 130304-PF carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Hole diameter0.1340
Included angle35
Inscribed circle0.3130
Insert handRight Hand
Insert length0.5120
Insert materialCarbide
Insert shapeDiamond
Insert size code130304
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT 130304-PF
Length range0.5000 - 0.6000
Manufacturers catalog number5568611
Manufacturer gradeIC830
Maximum depth of cut0.1180
Multi use applicationTurning
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
