Iscar

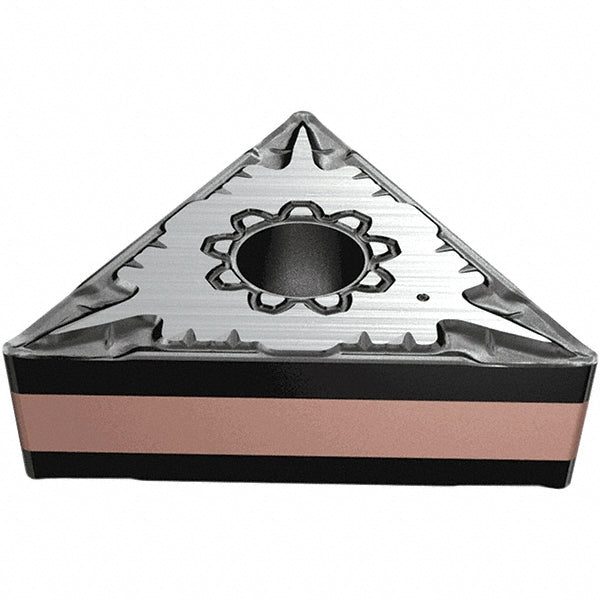

TNMG 333-F3M Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5568852
MFR# 5568852ISO/ANSI# TNMG 333-F3MSeries Isoturn
$13.57List $17.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5568852 is a TNMG 333-F3M solid carbide indexable insert, grade IC806, AlTiN coated. Suited for s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Included angle60.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code333
Insert styleTNMG
Insert thickness0.1870
Iso codeTNMG 333-F3M
Length range0.6500 - 0.7000
Manufacturers catalog number5568852
Manufacturer gradeIC806
Maximum depth of cut0.0790
Multi use applicationTurning
Primary workpiece materialS
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
