Iscar

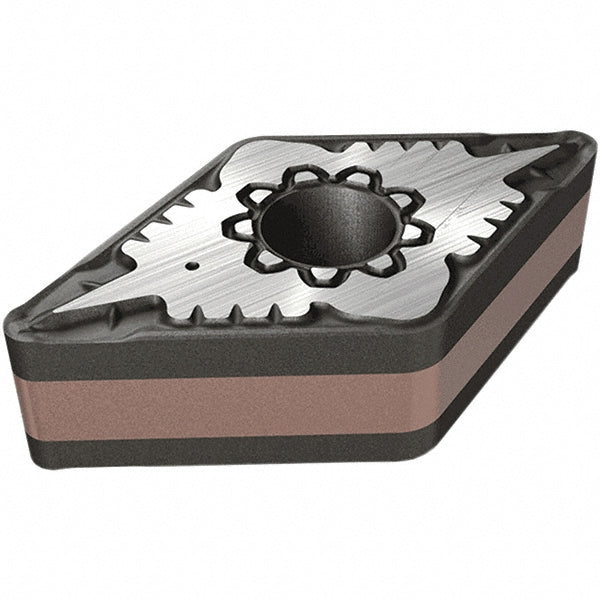

DNMG 431-F3M Carbide Insert, Grade IC806, AlTiN - Iscar 5568857
MFR# 5568857ISO/ANSI# DNMG 431-F3MSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 5568857 is a DNMG 431-F3M carbide indexable insert, grade IC806, AlTiN coated.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert length0.6100
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 431-F3M
Length range0.6000 - 0.6500
Manufacturers catalog number5568857
Manufacturer gradeIC806
Maximum depth of cut0.0590
Multi use applicationTurning
RakePositive
StandardsISO 13399
Tolerance codeM
