Iscar
ISO 13399 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5568858
MFR# 5568858ISO/ANSI# ISO 13399Series Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description

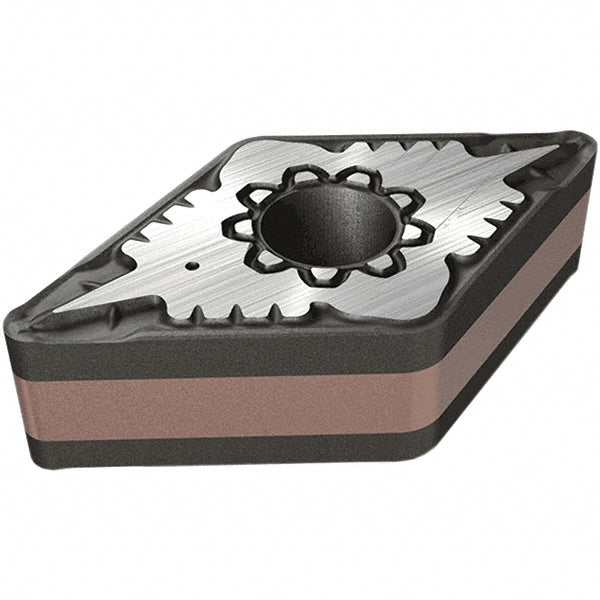

The Iscar 5568858 is a ISO 13399 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Included angle55.0
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Iso codeISO 13399
Manufacturer gradeIC806
Maximum depth of cut0.0590
Primary workpiece materialSuperalloy; Titanium
RakePositive
StandardsISO 13399
Tolerance codeM
