Iscar

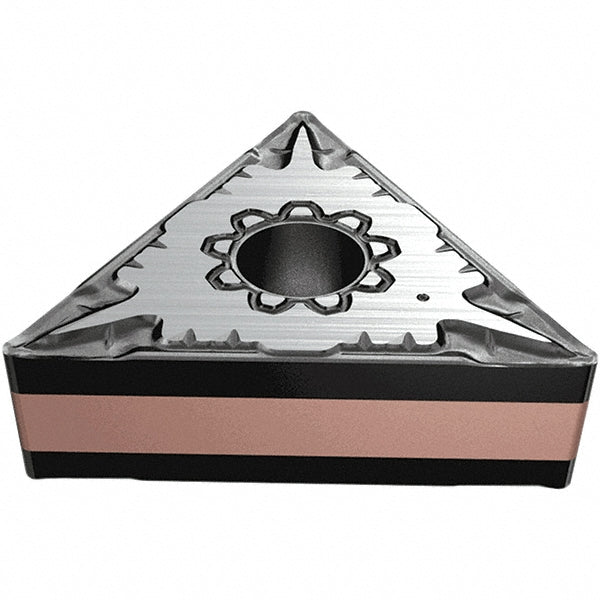

TNMG 431-F3M Carbide Insert, Grade IC807, TiAlN - Iscar 5568896
MFR# 5568896ISO/ANSI# TNMG 431-F3MSeries Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5568896 is a TNMG 431-F3M carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness0.1870
Iso codeTNMG 431-F3M
Length range0.7000 - 10.0000
Manufacturers catalog number5568896
Manufacturer gradeIC807
Maximum depth of cut0.0590
Multi use applicationTurning
RakePositive
StandardsISO 13399
Tolerance codeM
