Iscar

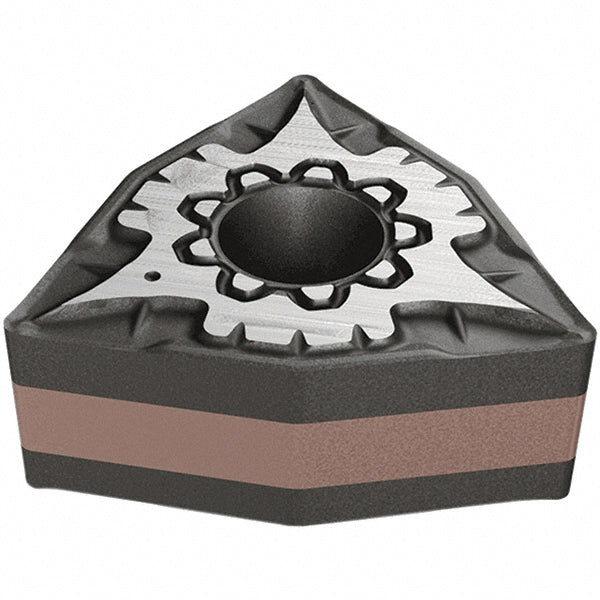

WNMG 432-F3M Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5568900
MFR# 5568900ISO/ANSI# WNMG 432-F3MSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5568900 is a WNMG 432-F3M solid carbide indexable insert, grade IC807, TiAlN coated. Suited for h, k, m, p, s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 432-F3M
Length range0.3000 - 0.4000
Manufacturers catalog number5568900
Manufacturer gradeIC807
Maximum depth of cut0.0590
Primary workpiece materialH; K; M; P; S
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
