Iscar

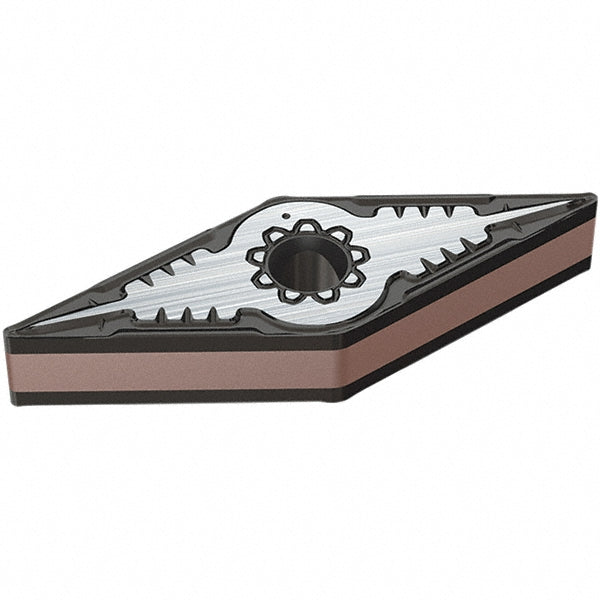

VNMG 2.5-1-F3M Solid Carbide Insert, Grade IC806, AlTiN - Iscar 5569008
MFR# 5569008ISO/ANSI# VNMG 2.5-1-F3MSeries Isoturn
$18.55List $23.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5569008 is a VNMG 2.5-1-F3M solid carbide indexable insert, grade IC806, AlTiN coated. Suited for s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle35.0
Inscribed circle0.2810
Insert handRight Hand
Insert length0.4880
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness0.1560
Iso codeVNMG 2.5-1-F3M
Length range0.4000 - 0.5000
Manufacturers catalog number5569008
Manufacturer gradeIC806
Maximum depth of cut0.0590
Multi use applicationTurning
Primary workpiece materialS
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
