Iscar

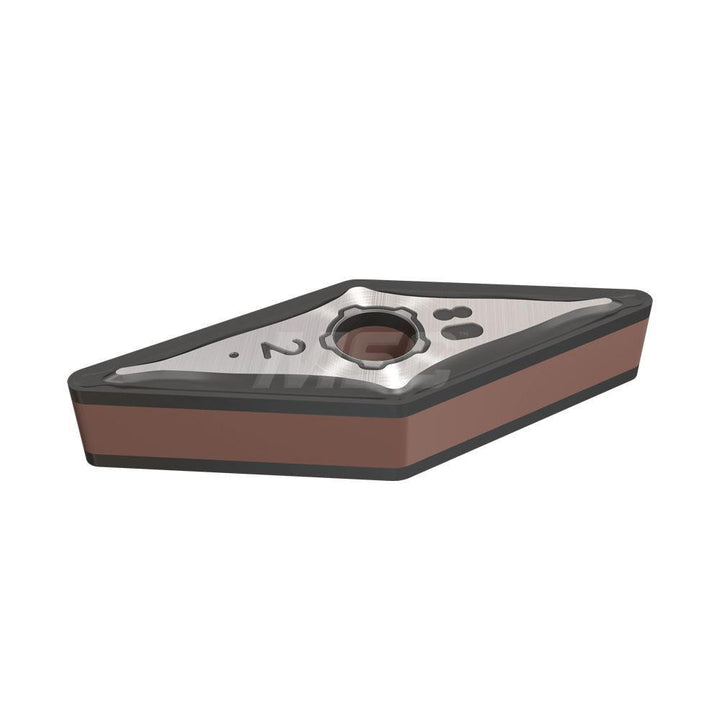

VNMG 332-M3M Solid Carbide Insert, Grade IC830, TiAlN - Iscar 5569101
MFR# 5569101ISO/ANSI# VNMG 332-M3MSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5569101 is a VNMG 332-M3M solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG 332-M3M
Length range0.6500 - 0.7000
Manufacturers catalog number5569101
Manufacturer gradeIC830
Maximum depth of cut0.0590
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
