Iscar

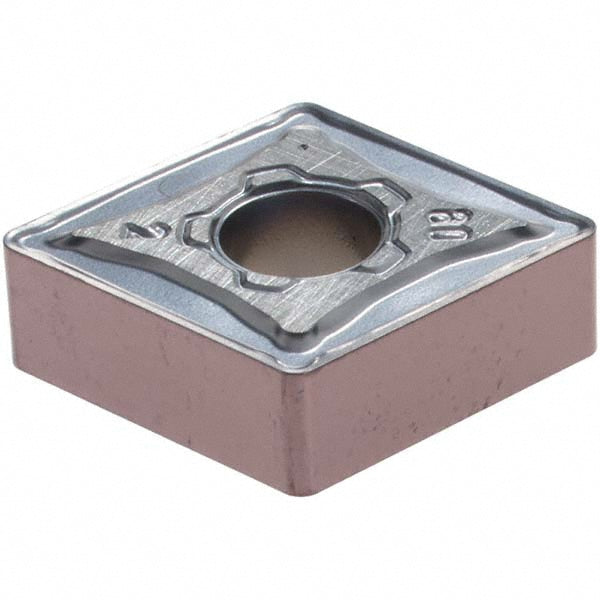

ISO 13399 Carbide Insert, Grade IC804, AlTiN - Iscar 5569183
MFR# 5569183ISO/ANSI# ISO 13399Series Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC804
MaterialCarbide
CoatingAlTiN
Description
The Iscar 5569183 is a ISO 13399 carbide indexable insert, grade IC804, AlTiN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Included angle80
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Iso codeISO 13399
Manufacturer gradeIC804
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel
RakePositive
StandardsISO 13399
Tolerance codeM
