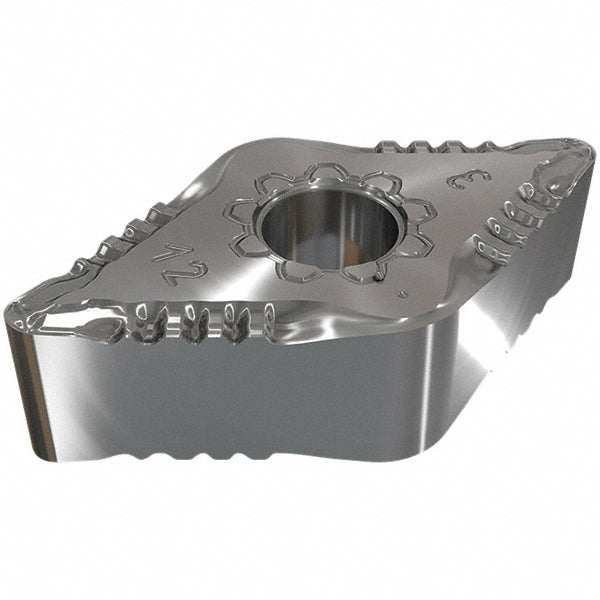

DNMG 331-F3P Carbide Insert, Grade IC807, TiAlN - Iscar 5569324

Iscar

DNMG 331-F3P Carbide Insert, Grade IC807, TiAlN - Iscar 5569324

MFR# 5569324ISO/ANSI# DNMG110404Series Isoturn

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5569324 is a DNMG 331-F3P carbide indexable insert, grade IC807, TiAlN coated.

Specifications

Ansi insert codeDNMG331
Ansi size code331
Chip breakerF3P
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle55
Inscribed circle in3/8
Insert handRight Hand
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 331-F3P
Iso insert codeDNMG110404
Iso size code110404
Length range0.4000 - 0.5000
Manufacturers catalog number5569324
Manufacturer gradeIC807
Maximum depth of cut0.1180
Multi use applicationTurning
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
