Iscar

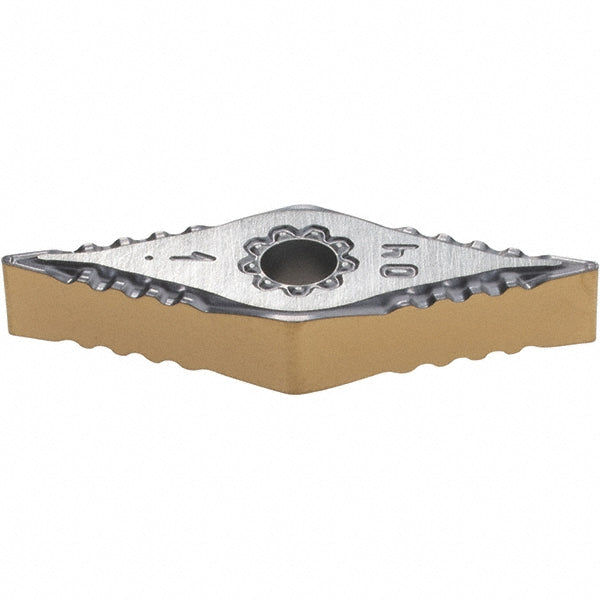

VNMG 331-F3P Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5569338
MFR# 5569338ISO/ANSI# VNMG 331-F3PSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5569338 is a VNMG 331-F3P solid carbide indexable insert, grade IC807, TiAlN coated. Suited for h, k, m, p, s.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG 331-F3P
Length range0.6500 - 0.7000
Manufacturers catalog number5569338
Manufacturer gradeIC807
Maximum depth of cut0.0790
Multi use applicationTurning
Primary workpiece materialH; K; M; P; S
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
