Iscar

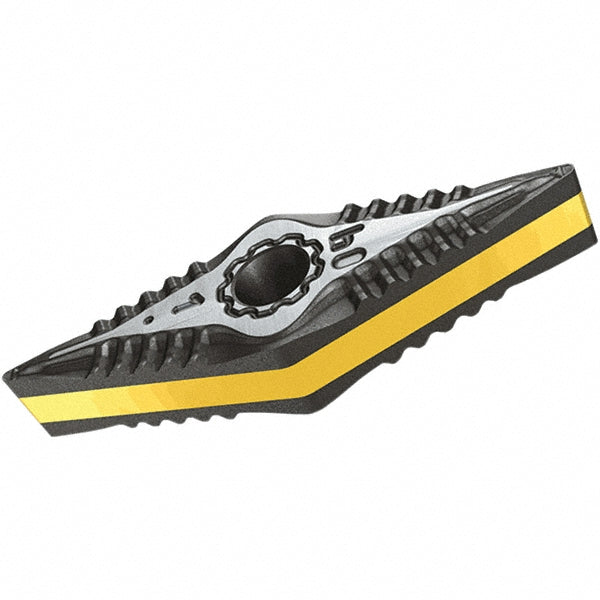

VNMG 332-F3P Carbide Insert, Grade IC807, TiAlN - Iscar 5569339
MFR# 5569339ISO/ANSI# VNMG160408Series Isoturn
$22.15List $28.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5569339 is a VNMG 332-F3P carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerF3P
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle35
Inscribed circle in3/8
Insert handRight Hand
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG 332-F3P
Iso insert codeVNMG160408
Iso size code160408
Length range0.6500 - 0.7000
Manufacturers catalog number5569339
Manufacturer gradeIC807
Maximum depth of cut0.1180
Multi use applicationTurning
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
