Iscar

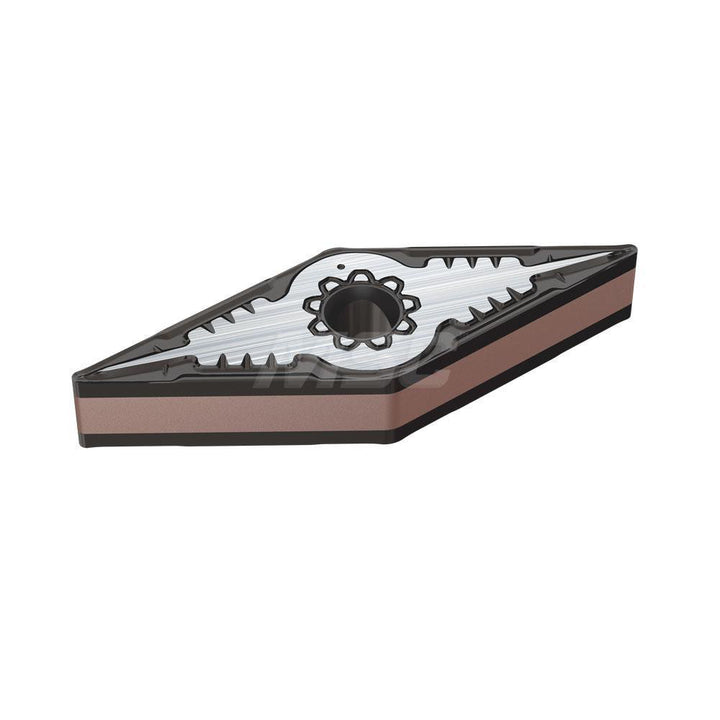

VNMG 331-F3M Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5569340
MFR# 5569340ISO/ANSI# VNMG 331-F3MSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5569340 is a VNMG 331-F3M solid carbide indexable insert, grade IC807, TiAlN coated. Suited for h, k, m, p, s.
Specifications
Chip breakerF3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG 331-F3M
Length range0.6500 - 0.7000
Manufacturers catalog number5569340
Manufacturer gradeIC807
Maximum depth of cut0.0590
Multi use applicationTurning
Primary workpiece materialH; K; M; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
