Iscar

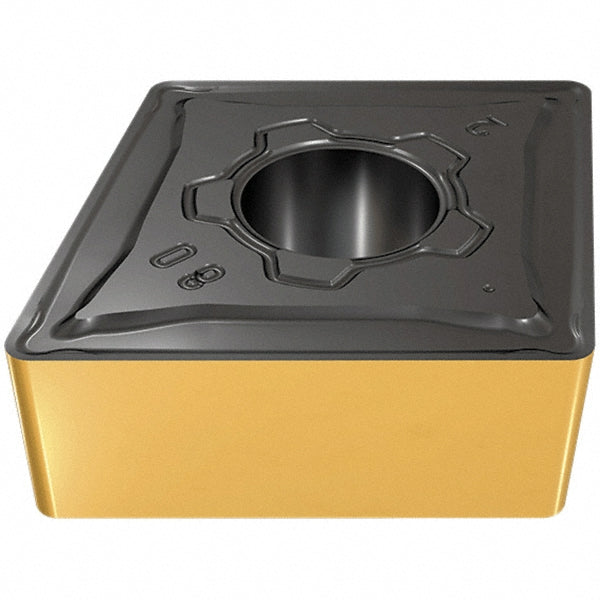

CNMG 431-M3M Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5569352
MFR# 5569352ISO/ANSI# CNMG 431-M3MSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5569352 is a CNMG 431-M3M solid carbide indexable insert, grade IC807, TiAlN coated. Suited for h, k, m, p, s.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 431-M3M
Length range0.5000 - 0.6000
Manufacturers catalog number5569352
Manufacturer gradeIC807
Maximum depth of cut0.1570
Primary workpiece materialH; K; M; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
