Iscar

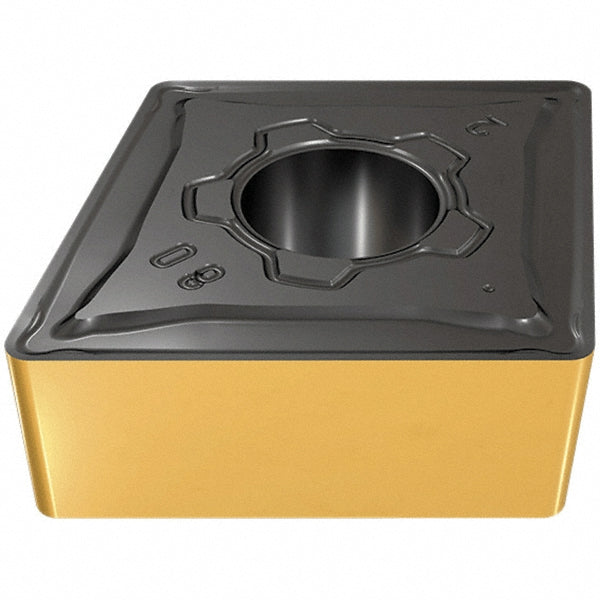

CNMG 432-M3M Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5569353
MFR# 5569353ISO/ANSI# CNMG 432-M3MSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5569353 is a CNMG 432-M3M solid carbide indexable insert, grade IC807, TiAlN coated. Suited for h, k, m, p, s.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle80.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG 432-M3M
Length range0.5000 - 0.6000
Manufacturers catalog number5569353
Manufacturer gradeIC807
Maximum depth of cut0.1970
Primary workpiece materialH; K; M; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
