Iscar

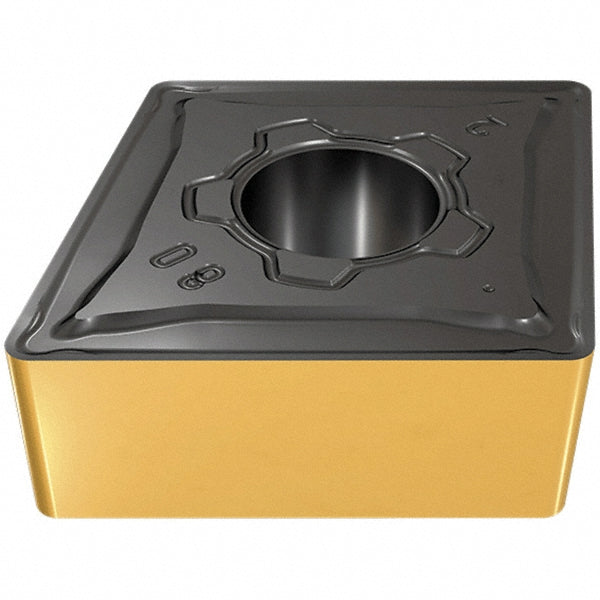

CNMG 643-M3M Carbide Insert, Grade IC807, TiAlN - Iscar 5569358
MFR# 5569358ISO/ANSI# CNMG 643-M3MSeries Isoturn
$37.69List $47.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5569358 is a CNMG 643-M3M carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Ansi size code643
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle in3/4
Insert handRight Hand
Insert length0.7610
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643-M3M
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number5569358
Manufacturer gradeIC807
Maximum depth of cut0.3940
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
