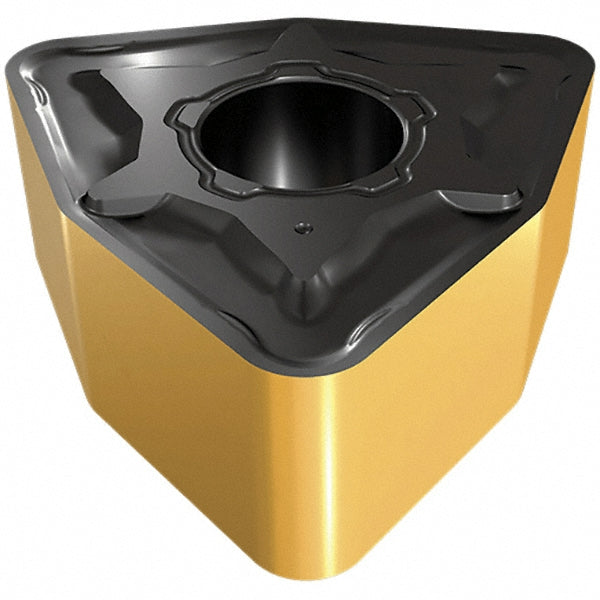

WNMG 431-M3M Carbide Insert, Grade IC807, TiAlN - Iscar 5569369

Iscar

WNMG 431-M3M Carbide Insert, Grade IC807, TiAlN - Iscar 5569369

MFR# 5569369ISO/ANSI# WNMG080404Series Isoturn

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5569369 is a WNMG 431-M3M carbide indexable insert, grade IC807, TiAlN coated.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 431-M3M
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturers catalog number5569369
Manufacturer gradeIC807
Maximum depth of cut0.1970
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
