Iscar

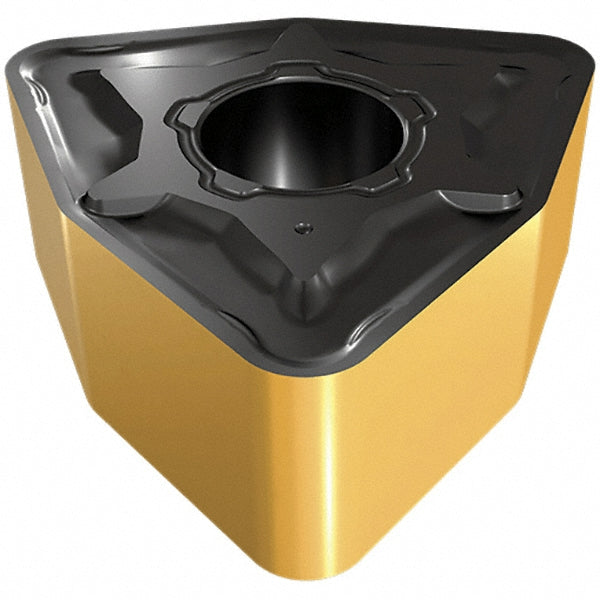

WNMG 434-M3M Carbide Insert, Grade IC807, TiAlN - Iscar 5569372
MFR# 5569372ISO/ANSI# WNMG 434-M3MSeries Isoturn
$15.36List $19.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5569372 is a WNMG 434-M3M carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Included angle80
Inscribed circle in1/2
Insert handRight Hand
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code434
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG 434-M3M
Length range0.3000 - 0.4000
Manufacturers catalog number5569372
Manufacturer gradeIC807
Maximum depth of cut0.1970
RakePositive
StandardsISO 13399
Tolerance codeM
