Iscar

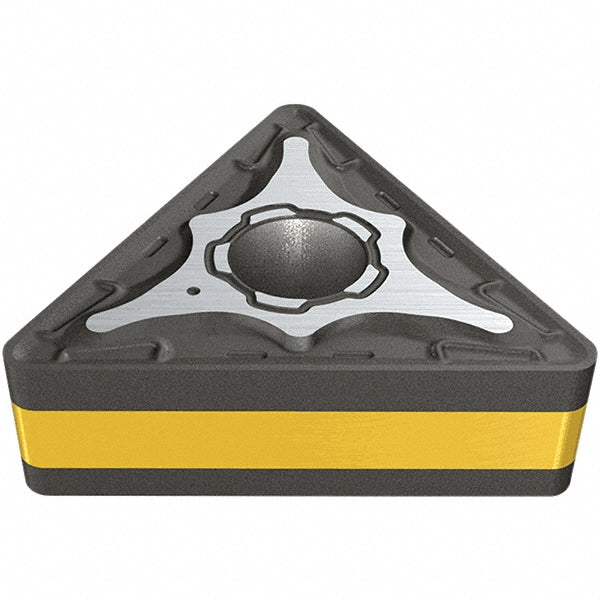

TNMG 432-M3P Carbide Insert, Grade IC807, TiAlN - Iscar 5569400
MFR# 5569400ISO/ANSI# TNMG 432-M3PSeries Isoturn
$16.53List $21.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5569400 is a TNMG 432-M3P carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness0.1870
Iso codeTNMG 432-M3P
Length range0.7000 - 10.0000
Manufacturers catalog number5569400
Manufacturer gradeIC807
Maximum depth of cut0.2600
Multi use applicationTurning
RakePositive
StandardsISO 13399
Tolerance codeM
