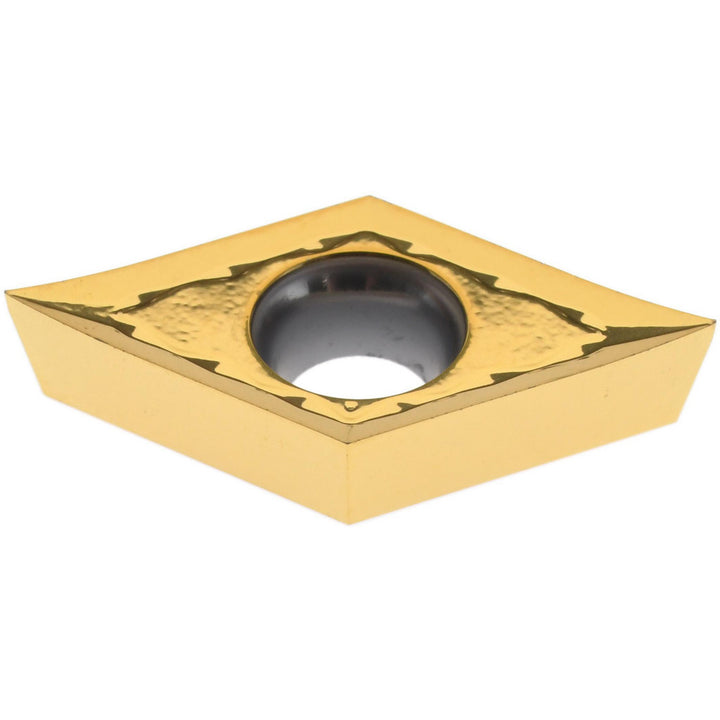

ISO 13399 Solid Carbide Insert, Grade IC520, TiCN - Iscar 5590080

Iscar

ISO 13399 Solid Carbide Insert, Grade IC520, TiCN - Iscar 5590080

MFR# 5590080ISO/ANSI# ISO 13399Series Isoturn

$27.45List $35.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5590080 is a ISO 13399 solid carbide indexable insert, grade IC520, TiCN coated. Suited for hard material, stainless steel, superalloy, titanium.

Specifications

ChipbreakerAS
Coating finishTiCN
Coating processPVD
Corner radius0.0040
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3
Insert styleDCGT
Iso codeISO 13399
Length0.4567
Manufacturer gradeIC520
Maximum depth of cut0.0980
Primary workpiece materialHard Material; Stainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
ShapeDiamond
StandardsISO 13399
Thickness in5/32
