Iscar

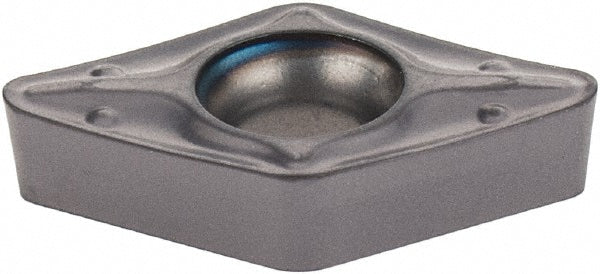

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5590342
MFR# 5590342ISO/ANSI# DCMT070208Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5590342 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Ansi insert codeDCMT2-2
Ansi size code2-2
Chip breakerPF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3031
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2-2
Insert styleDCMT
Insert thickness in3/32
Iso codeISO 13399
Iso insert codeDCMT070208
Iso size code070208
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1181
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
