Iscar

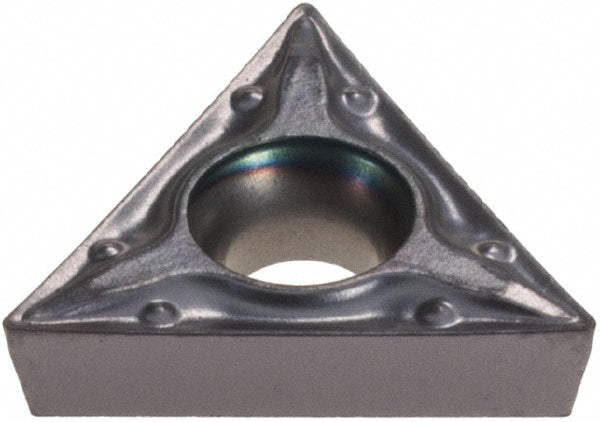

Triangle 1/4" IC Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5590775
MFR# 5590775Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5590775 is a solid carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.1122
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4330
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-0
Insert styleTCMT
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
RakePositive
Relief angle7
Stocking categoryD
Tolerance codeM
