Iscar

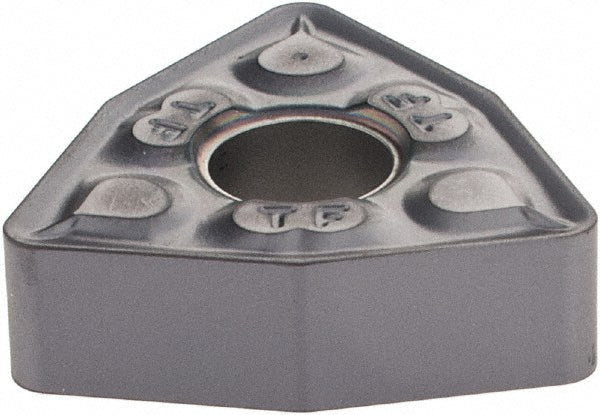

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5590820
MFR# 5590820ISO/ANSI# ISO 13399Series Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5590820 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for k, m, p.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1770
Primary workpiece materialK; M; P
RakePositive
Relief angle0
Secondary workpiece materialH; S
StandardsISO 13399
Tolerance codeM
