Iscar

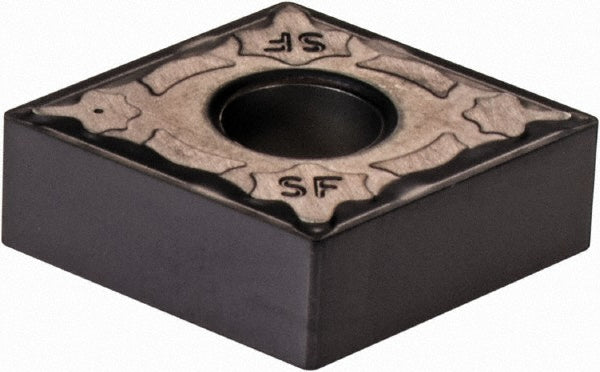

CNGG 431-SF Solid Carbide Insert, Grade IC907, TiN - Iscar 5591549
MFR# 5591549ISO/ANSI# CNGG 431-SFCat# CNGG 431-SFSeries Isoturn
$25.03List $32.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5591549 is a CNGG 431-SF solid carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG 431-SF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNGG 431-SF
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0790
Multi use toolYes
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeG
