Iscar

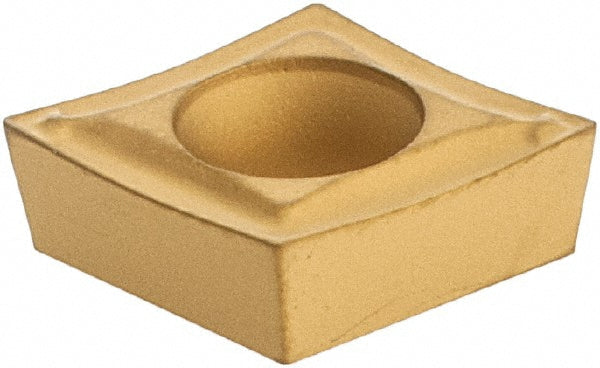

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5591636
MFR# 5591636ISO/ANSI# ISO 13399Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5591636 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
