Iscar

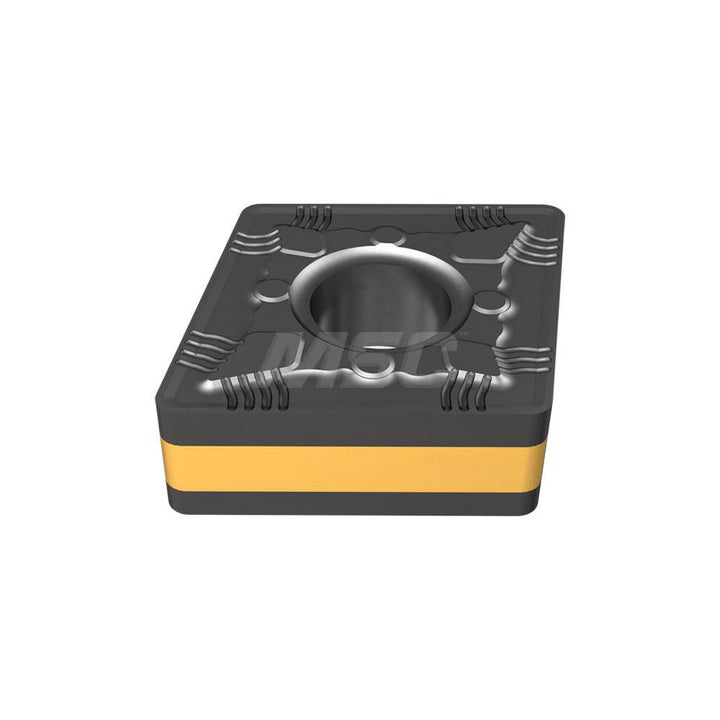

CNMG 434-NR Solid Carbide Insert, Grade IC9150, TiCN - Iscar 5591676
MFR# 5591676ISO/ANSI# CNMG 434-NRCat# CNMG 434-NRSeries Isoturn
$14.03List $18.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC9150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5591676 is a CNMG 434-NR solid carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 434-NR
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 434-NR
Manufacturer gradeIC9150
Maximum depth of cut0.1970
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
