Iscar

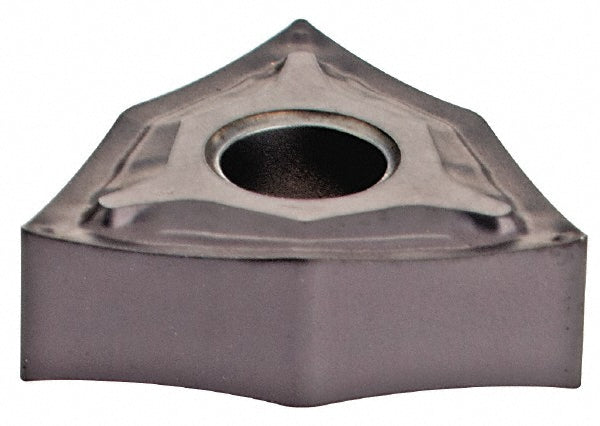

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5591780
MFR# Iscar-5591780ISO/ANSI# ISO 13399Series Isoturn
$11.93List $15.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5591780 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-0
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0591
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
