Iscar

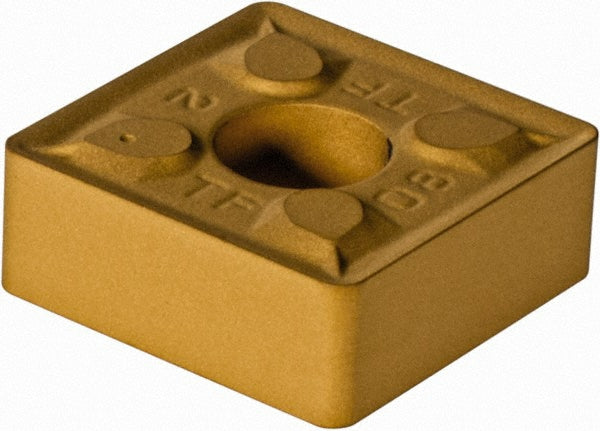

SNMG 432-TF Carbide Insert, Grade IC9250, TiCN - Iscar 5591816
MFR# 5591816ISO/ANSI# SNMG 432-TFCat# SNMG 432-TFSeries Isoturn
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC9250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5591816 is a SNMG 432-TF carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle90
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 432-TF
Manufacturers catalog numberSNMG 432-TF
Manufacturer gradeIC9250
Maximum depth of cut0.1570
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Width in1/2
