Iscar

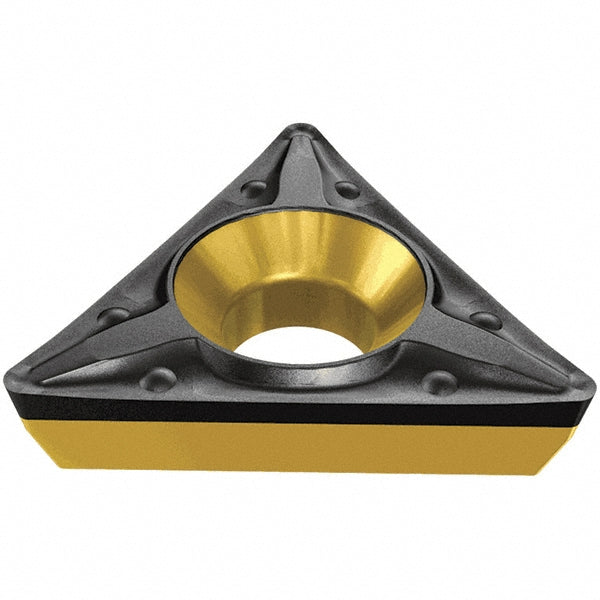

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5591886
MFR# 5591886ISO/ANSI# ISO 13399Series Isoturn
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5591886 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1181
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTPMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC9250
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
Relief angle11
StandardsISO 13399
Tolerance codeM
