Iscar

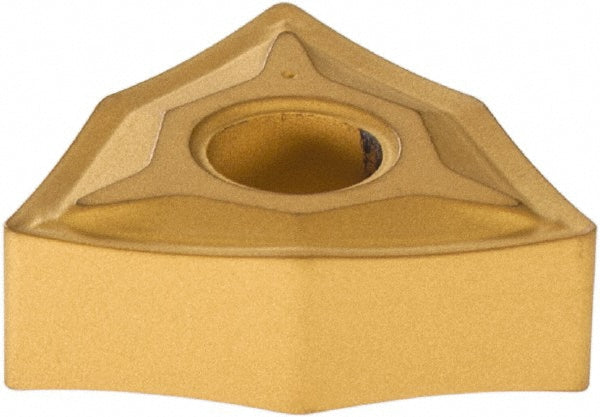

WNMG 3-1-NF Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5591906
MFR# 5591906ISO/ANSI# WNMG 3-1-NFCat# WNMG31NFSeries Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5591906 is a WNMG 3-1-NF solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2570
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-1
Insert styleWNMG
Insert thickness in5/32
Iso codeWNMG 3-1-NF
Length range0.0000 - 0.3000
Manufacturers catalog numberWNMG31NF
Manufacturer gradeIC9250
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
